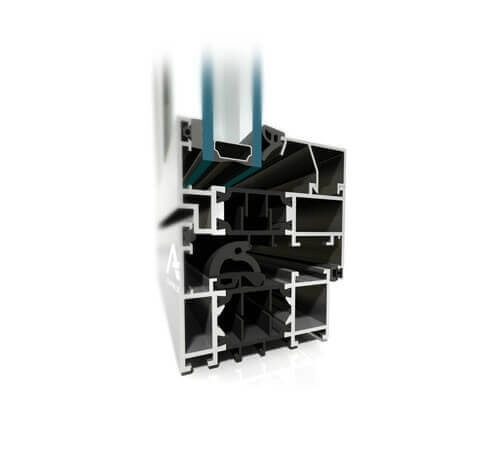

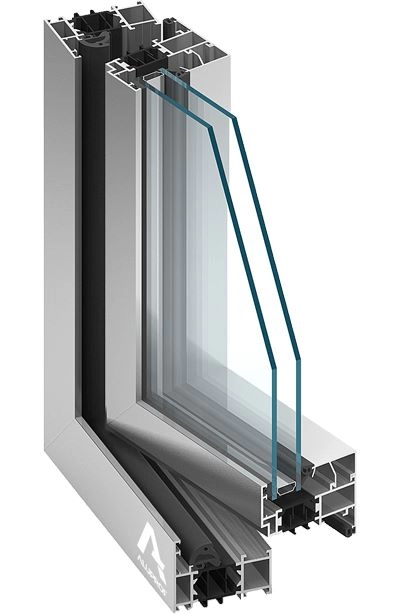

Aluminum Window MB-79
Profile

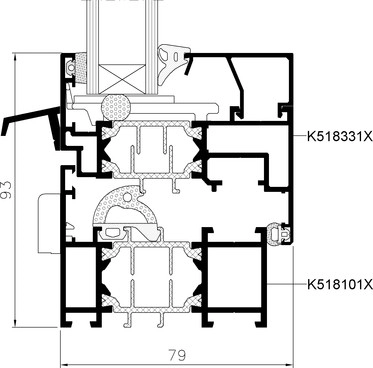

Installation depth:
77/86.4 mm
77/86.4 mm
Construction
Aluminum construction that has thermal chamber with insulators and filling
Color
Wide Selections of colors
Fittings
Multi-point locking fittings of an increased anti-corrosion protection, optional Designo fitting, RC2 anti-burglar, Tilt-First
Seals
Three seals
| Max Dimensions | 120" x 120" or 120" x 120" |
| Installation Hardware | Clip |
| Operation | Tild/Turn In Outswing Doors |
| Thermal Resistance | U-Value as low as .23 |
| STC | 35-46 |
| SHGC | as low as 0.17 |
| Air Filtration | 0.01 cfm/ft2 |
| Water Leakage | 12.1 psf |
| IK-ON MB-79 Window & Storefront Data Sheet.pdf | |
| IK-ON MB-79 Catalog.pdf | |
| IK-ON MB-79 installation instructions.pdf |
